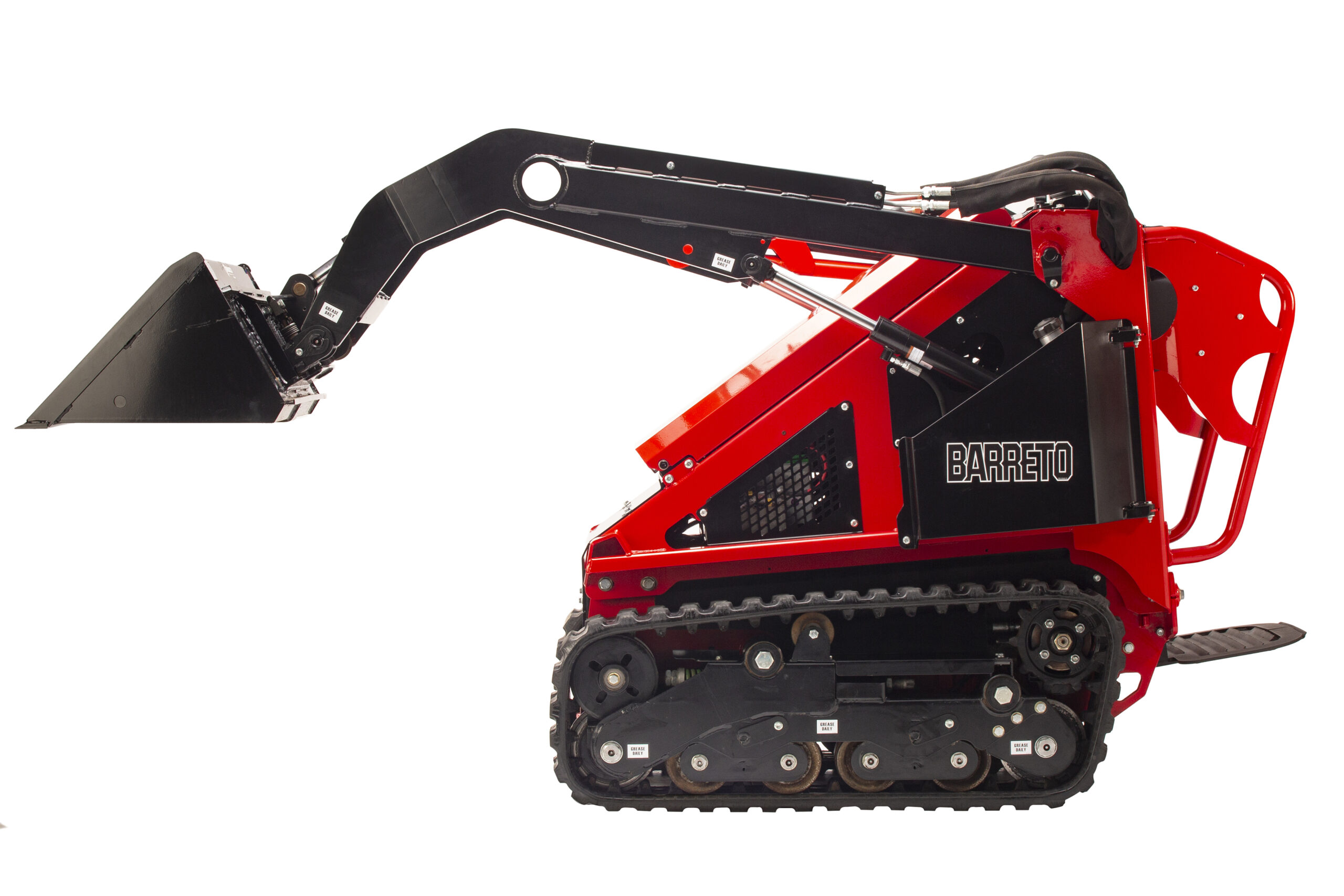

825TKL MINI TRACK LOADER

25ms117

SPECIFICATIONS

ENGINE:
Kubota D1105

DETAILS:
Weight: 2,950 lb.
Height: 105.75″
Length: 106.5″
Width: 36.6″
Ground Clearance: 7.25″
Tipping Capacity: 2,325 lb
Operating Capacity: 800 lb
Angle of Departure: 28˚
Forward Speed: 5.1 mph
Reverse Speed: 3.6 mph
Ground Pressure: 4.6 psi

FEATURES

  • Cab-over design provides exceptional access to components
  • Filters, fluids, and other routine maintenance areas are easily accessed
  • Electric-over-hydraulic drive control system

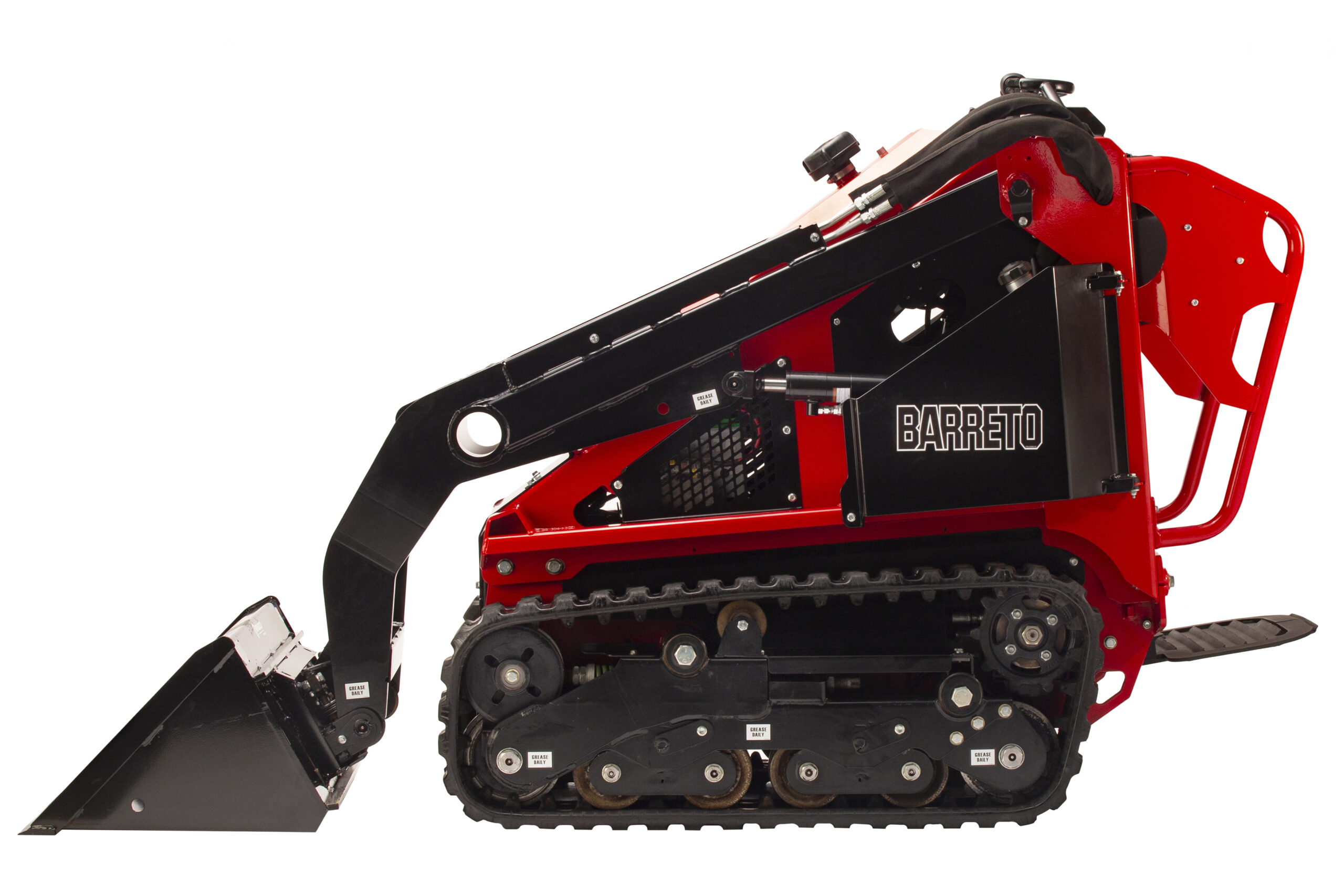

  • Articulated rollers on the track system absorb impact

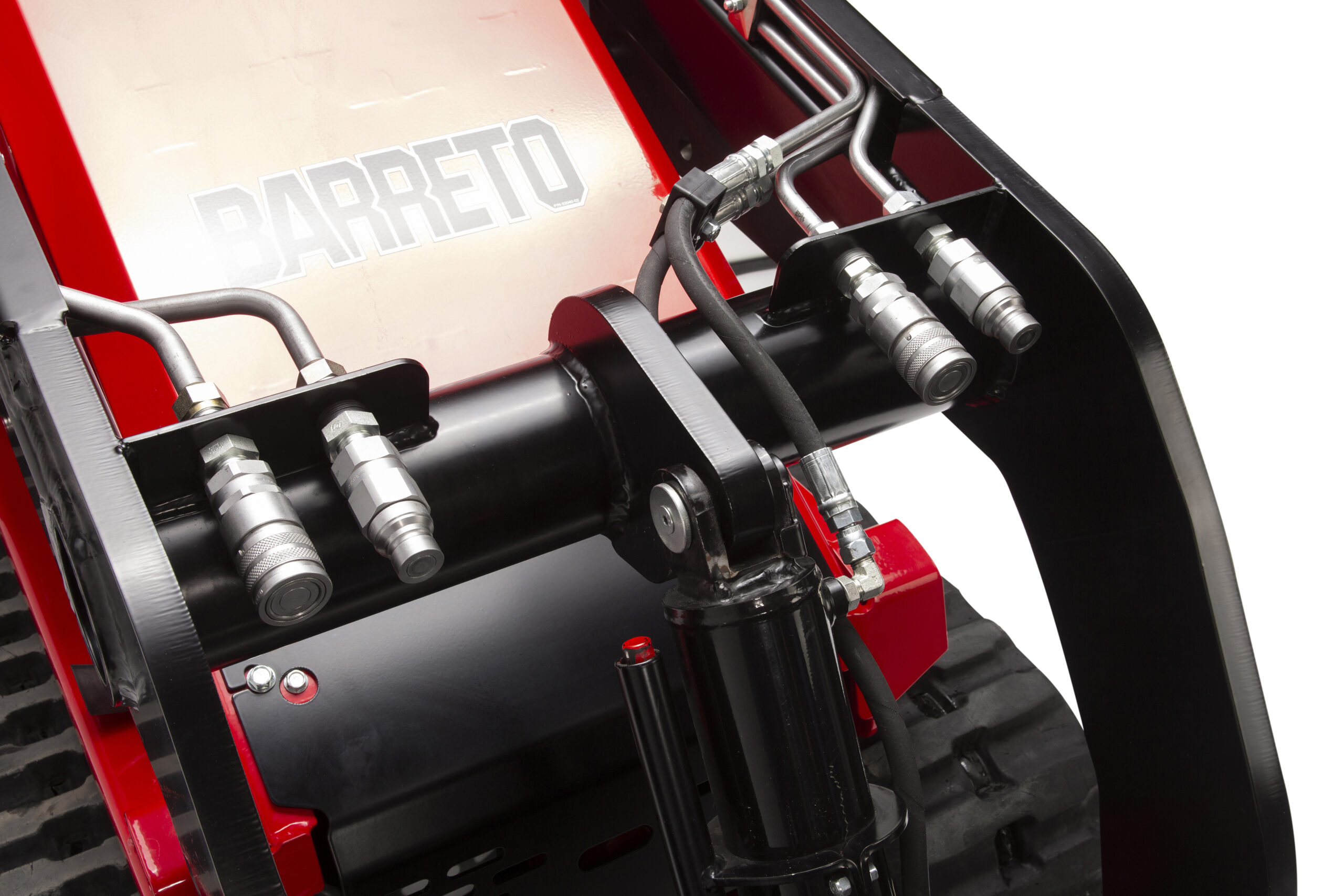

  • Universal attachment plate allows use of industry-standard quick-change attachments
25ms125

WHY BARRETO?

 DESIGN
Introducing the all-new 825TKL Mini Track Loader from Barreto. The 825TKL track carriages utilize two sets of articulated rollers to absorb impact and traverse smoothly over obstacles and uneven ground. In addition to the spring tensioner, the 825TKL track system features a secondary hydraulic tensioning system to maintain the correct tension when in reverse.

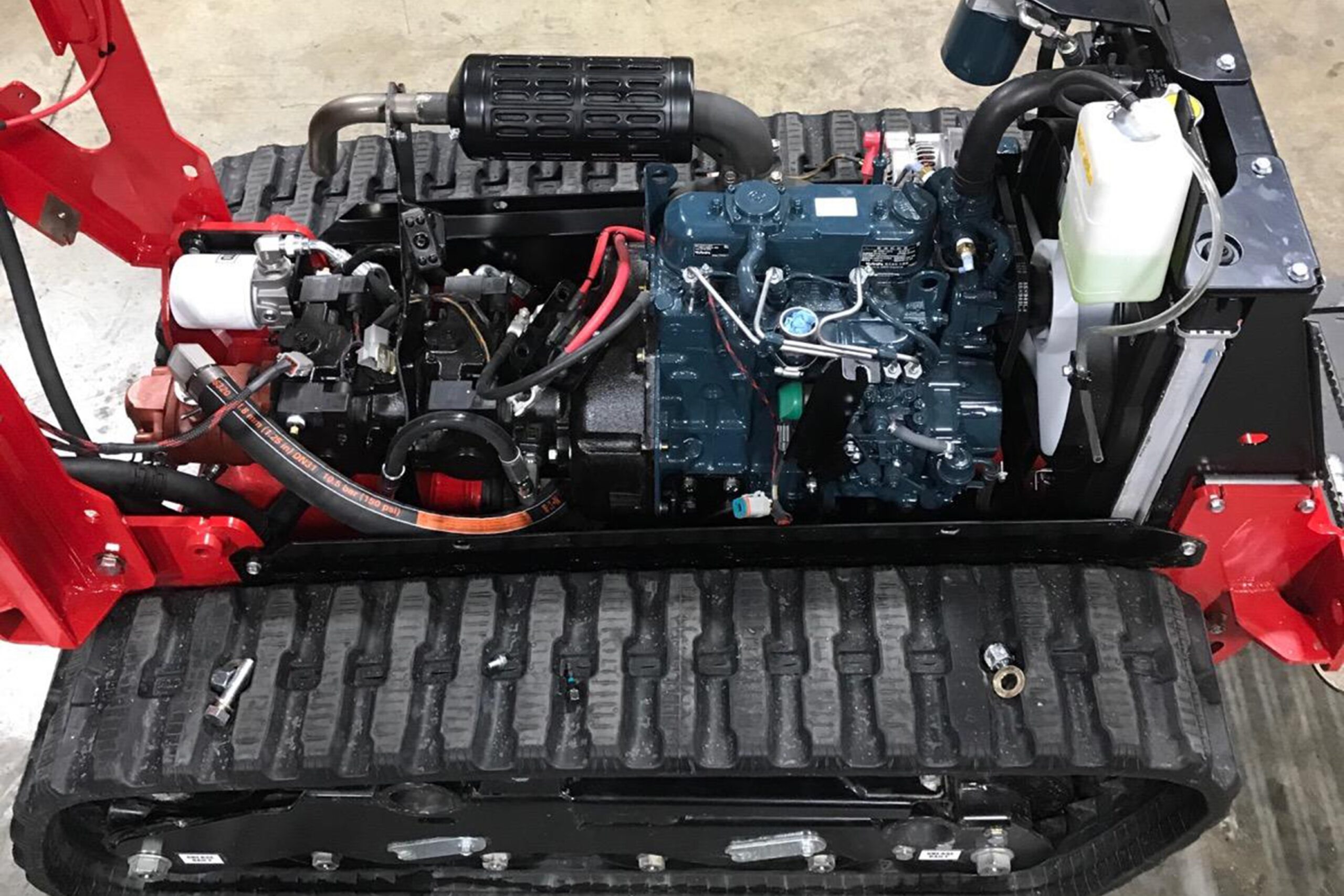

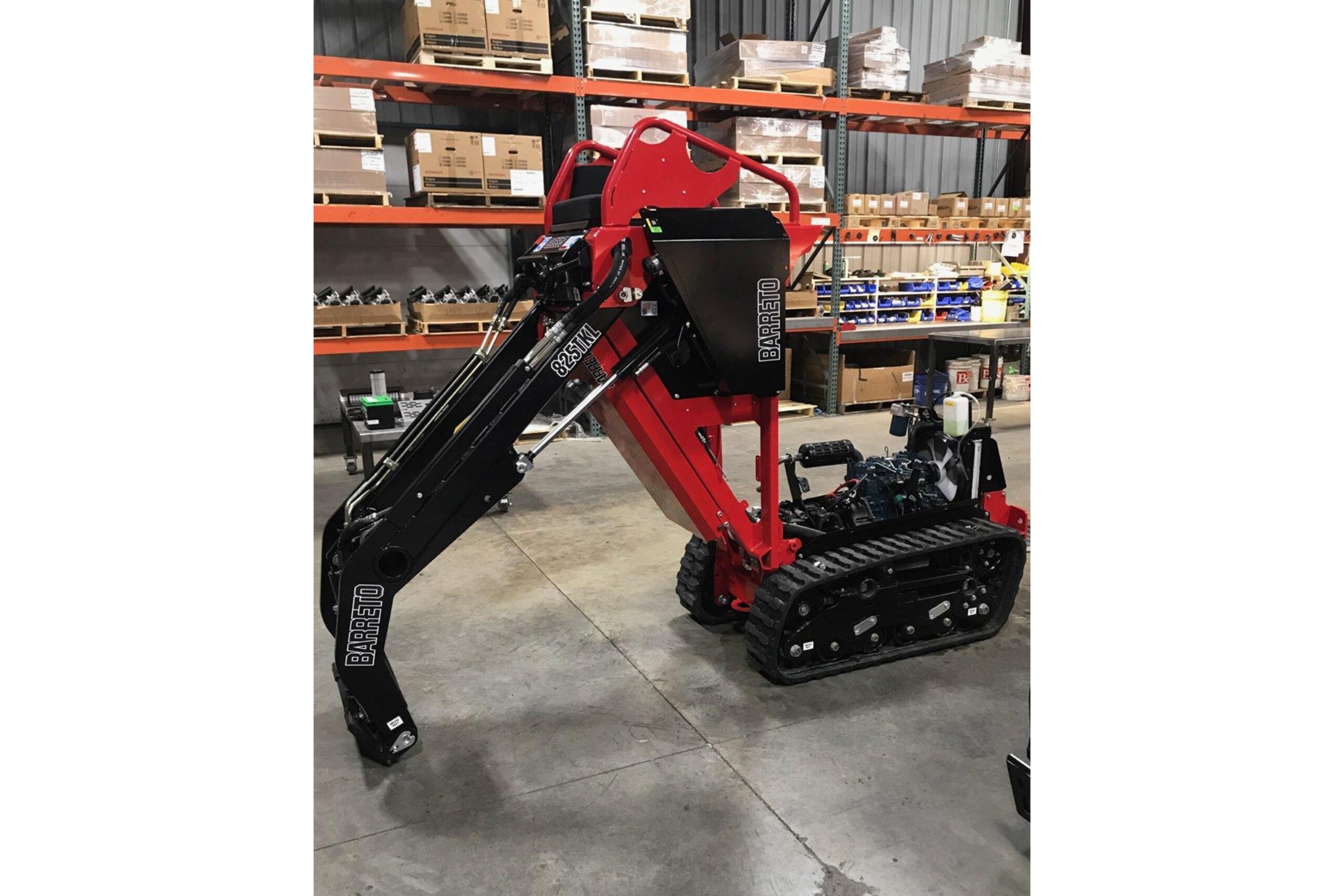

Fluid changes and other routine maintenance tasks are easily accomplished on the 825TKL. The cab-over design of the upper frame provides exceptional access to the engine, hydraulic pumps, and other major components.

The electric-over-hydraulic drive control system provides smooth, effortless control of ground drive function.

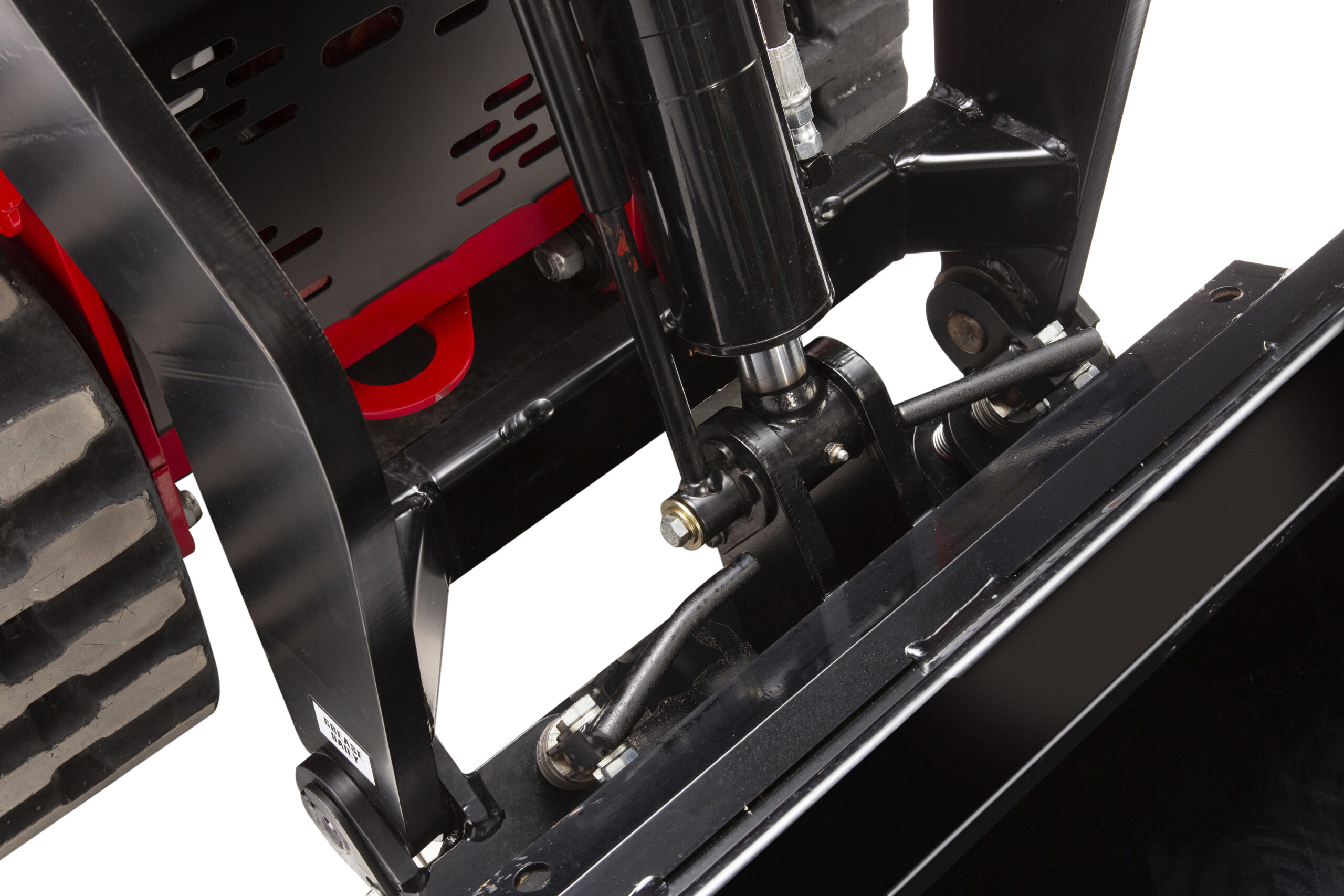

The 825TKL employs a universal attachment plate that allows for the use of any industry-standard quick-change attachment.
