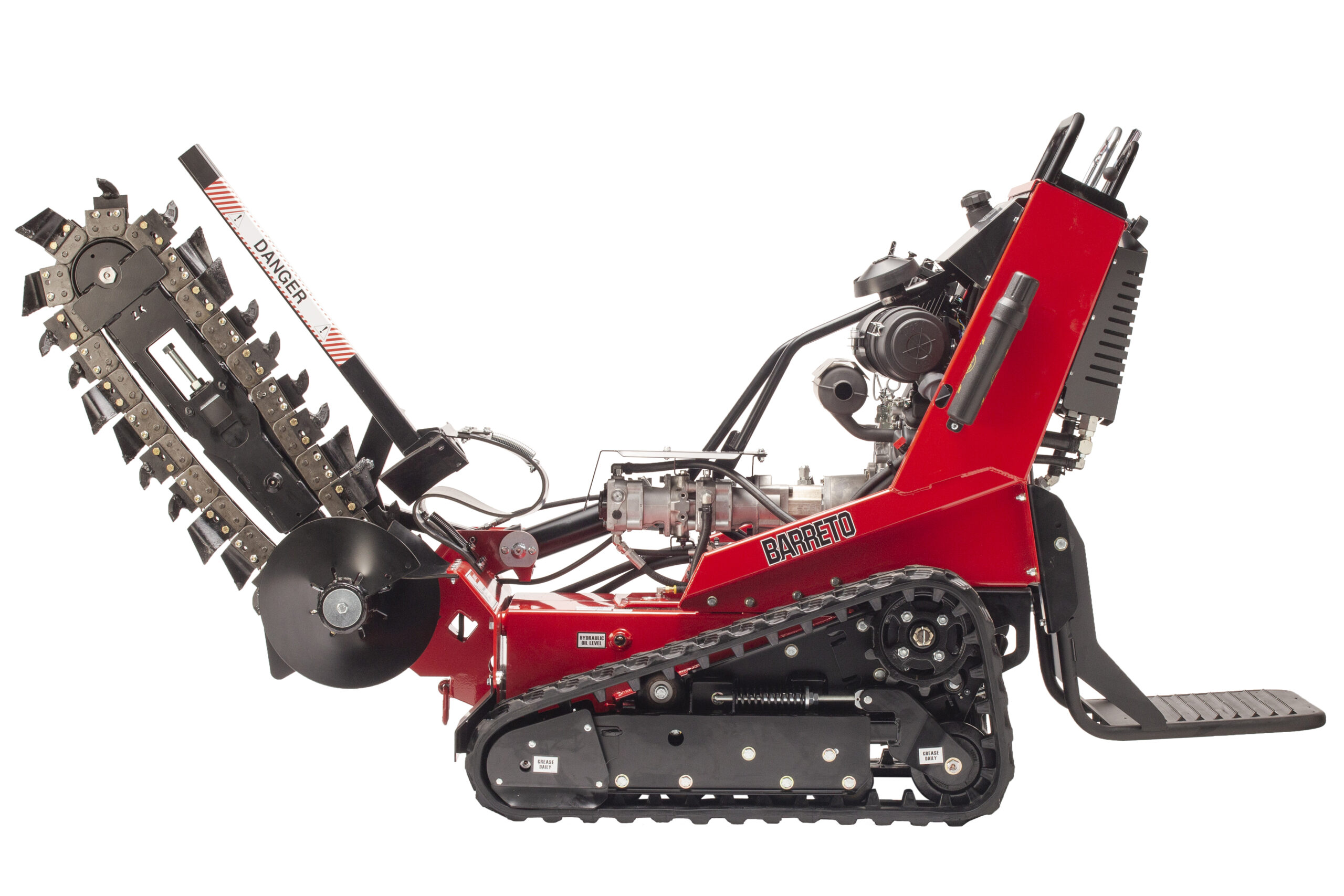

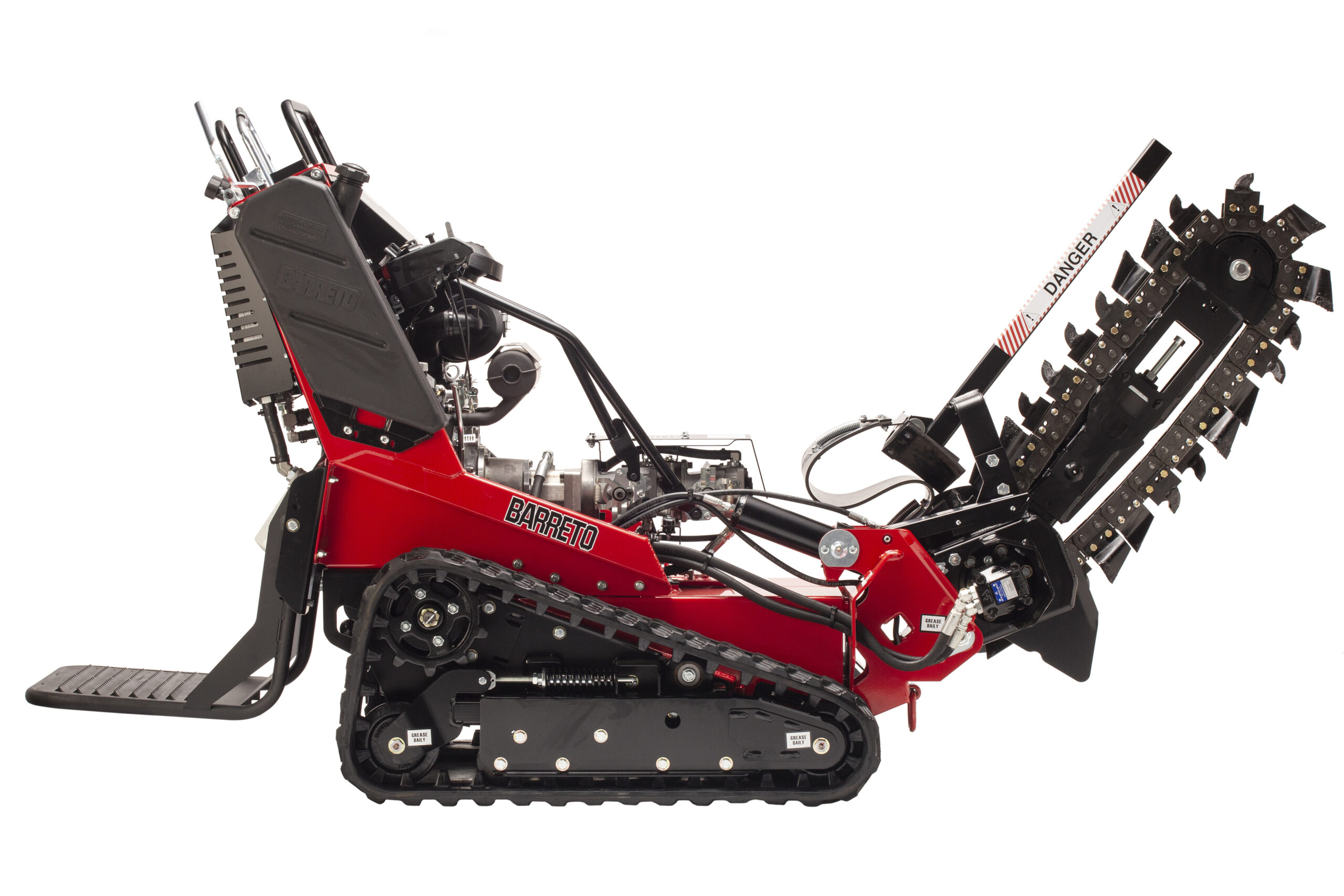

20RTK/23RTK TRACK TRENCHER

2324rtk-4ms120

SPECIFICATIONS

ENGINE:
2024RTKH: Honda GX630
2324RTKH: Honda GX690
2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp

DETAILS:
Weight: 1,690 lbs.
Height: 56.2″
Length: 108″
Width: 35.5″
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Hydraulic Reservoir: 14 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 90 ft/min
Digging Chain Speed:  270 ft/min
Boom Depth Options: 24, 30, 36, 42, or 48″ (48″ only available on 23RTK models)
Chain Width Options: 4 or 6″

FEATURES

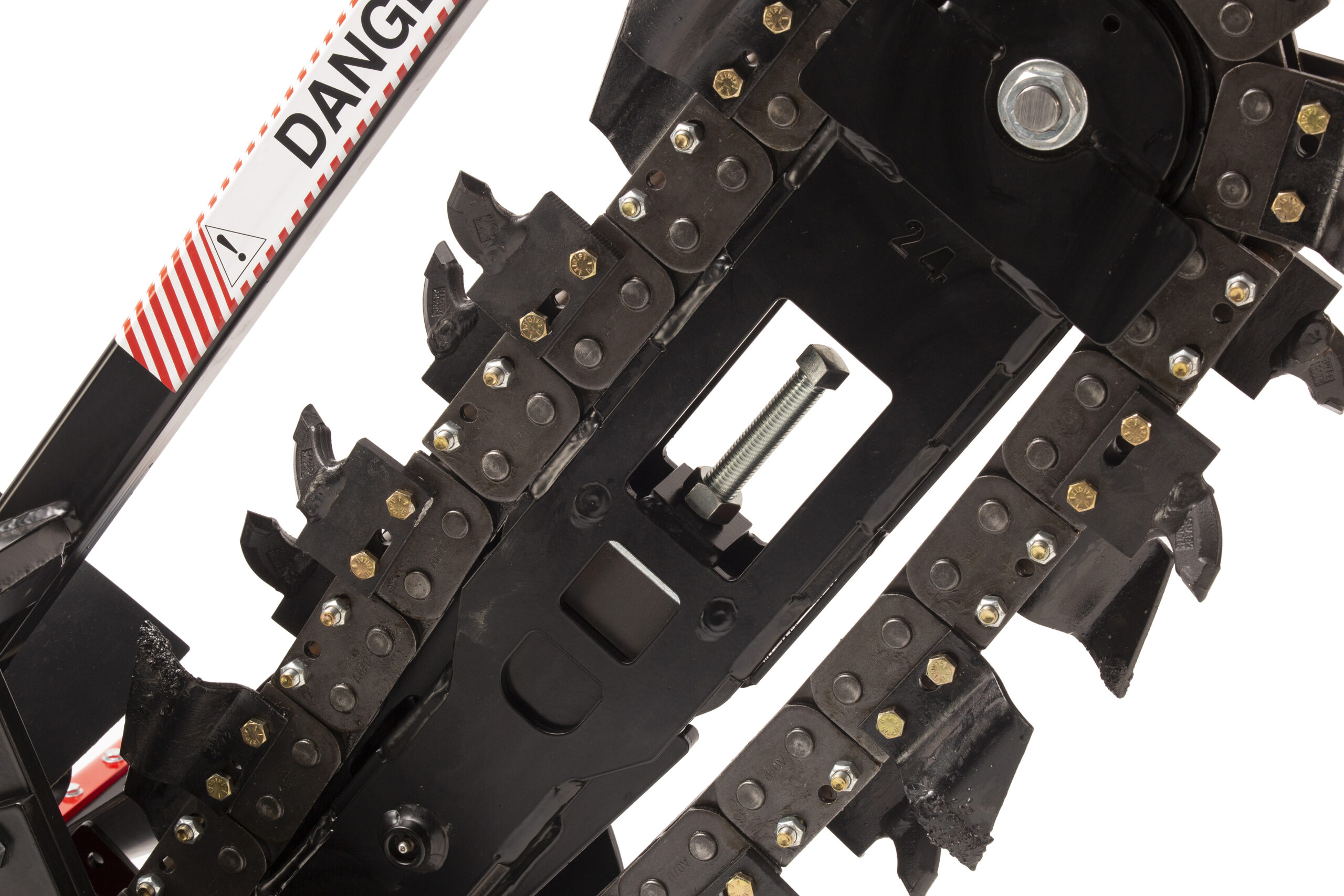

  • Boom tension can be easily adjusted when needed

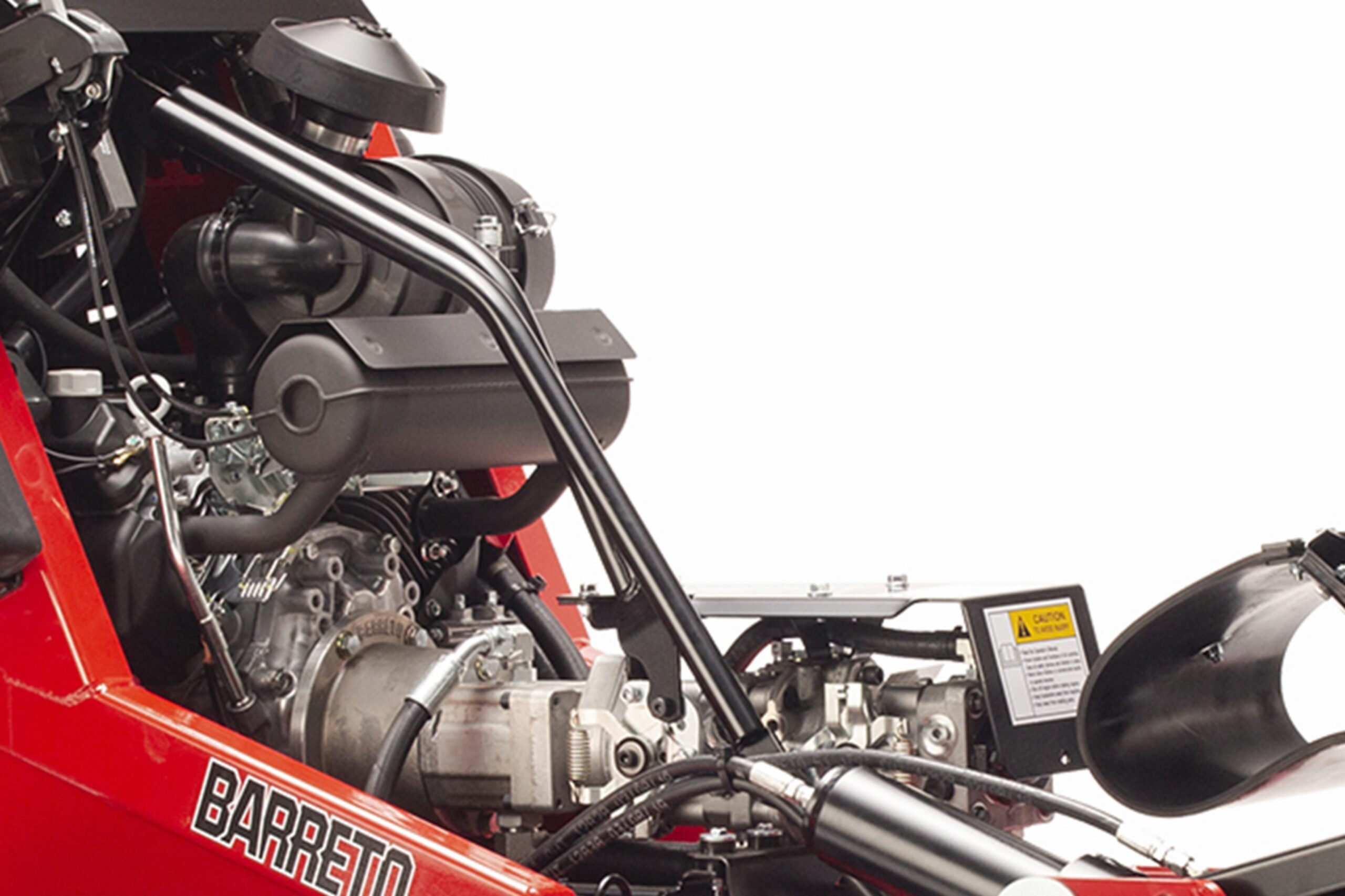

  • Quick access to all of the hydraulics for easy maintenance and repair

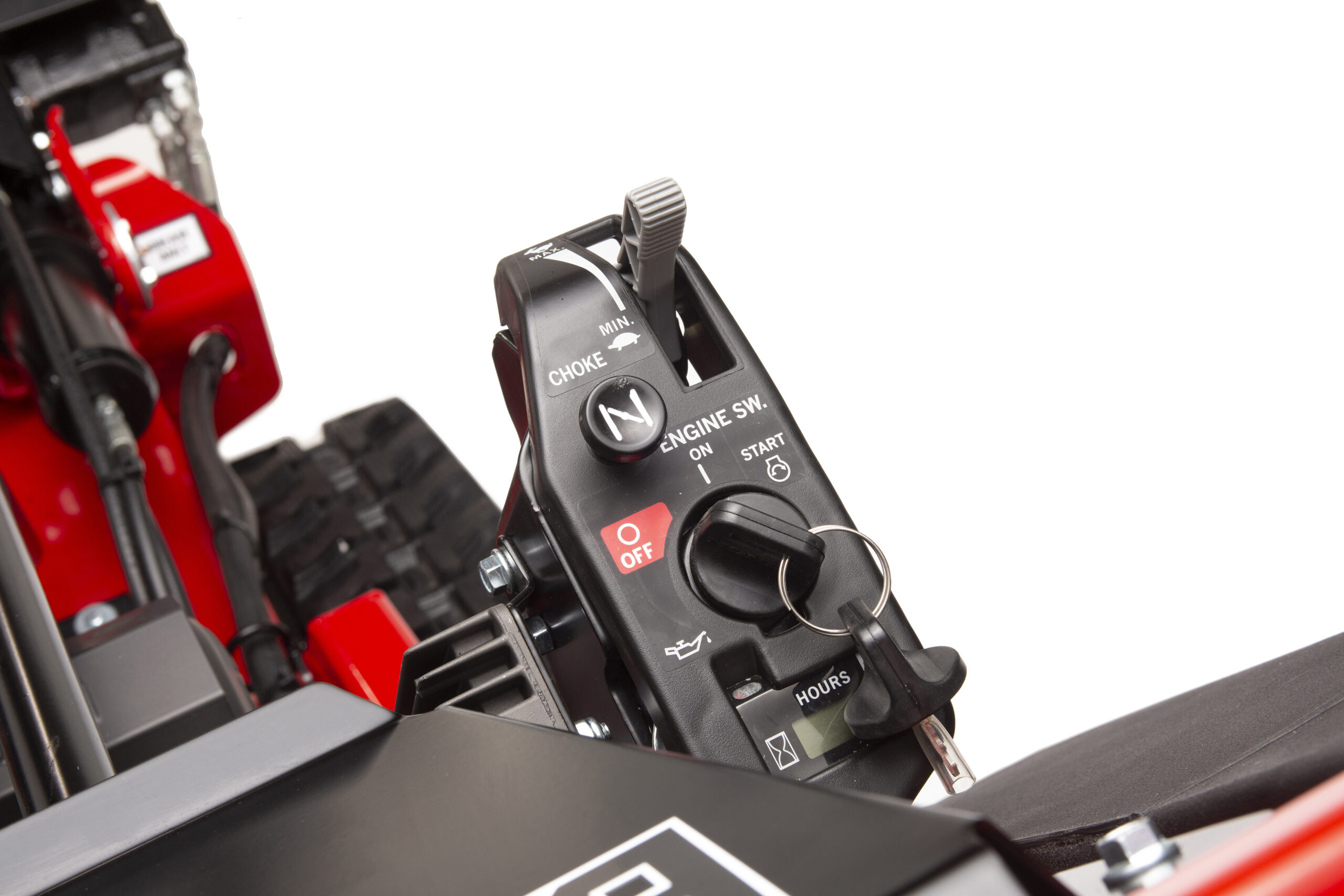

  • Adjustable Trenching Controls (ATC) use rod linkage instead of cables

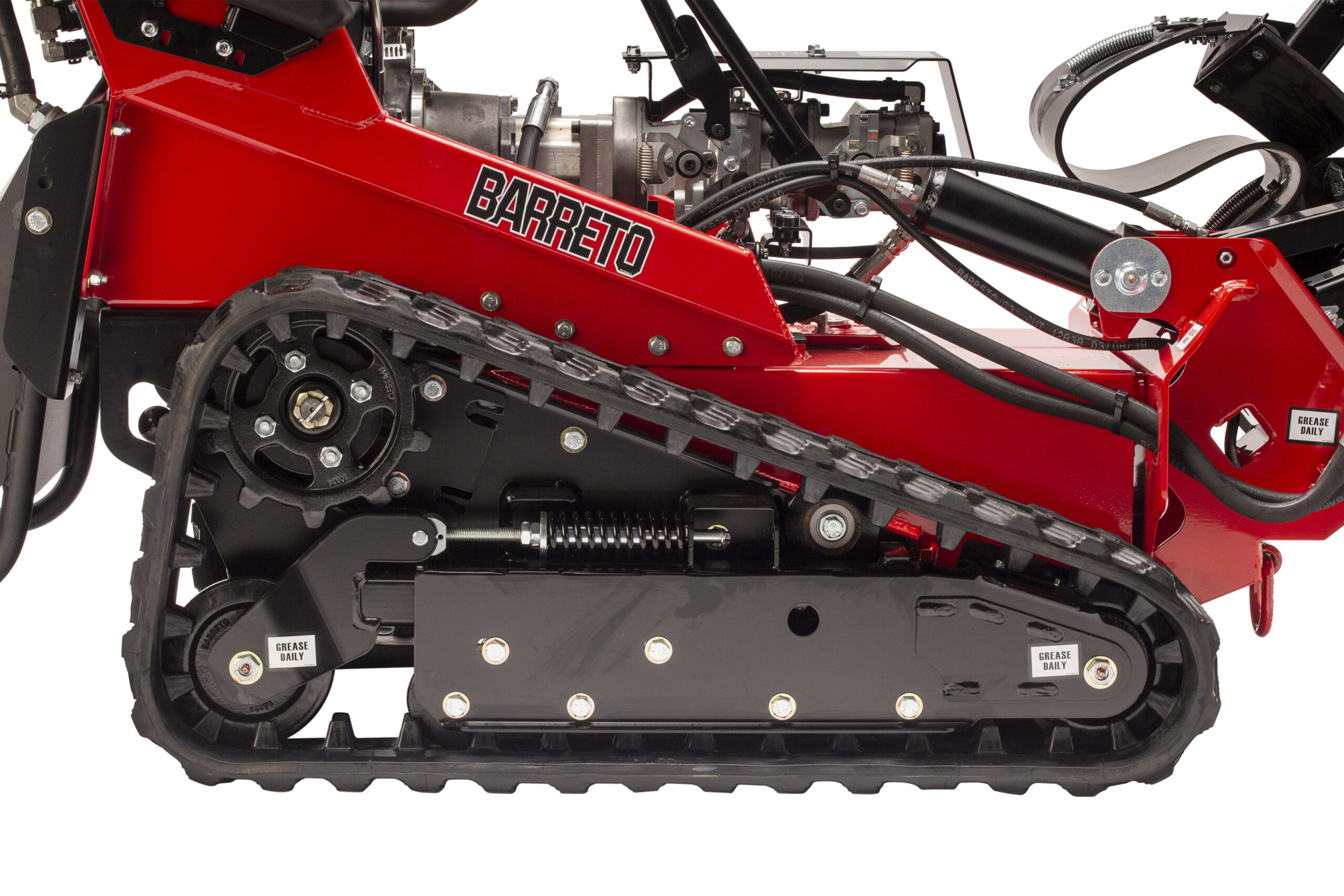

  • Independent floating track system adapts to terrain
  • Standard electric start on all models



2324rtk-4ms169

WHY BARRETO?

DESIGN

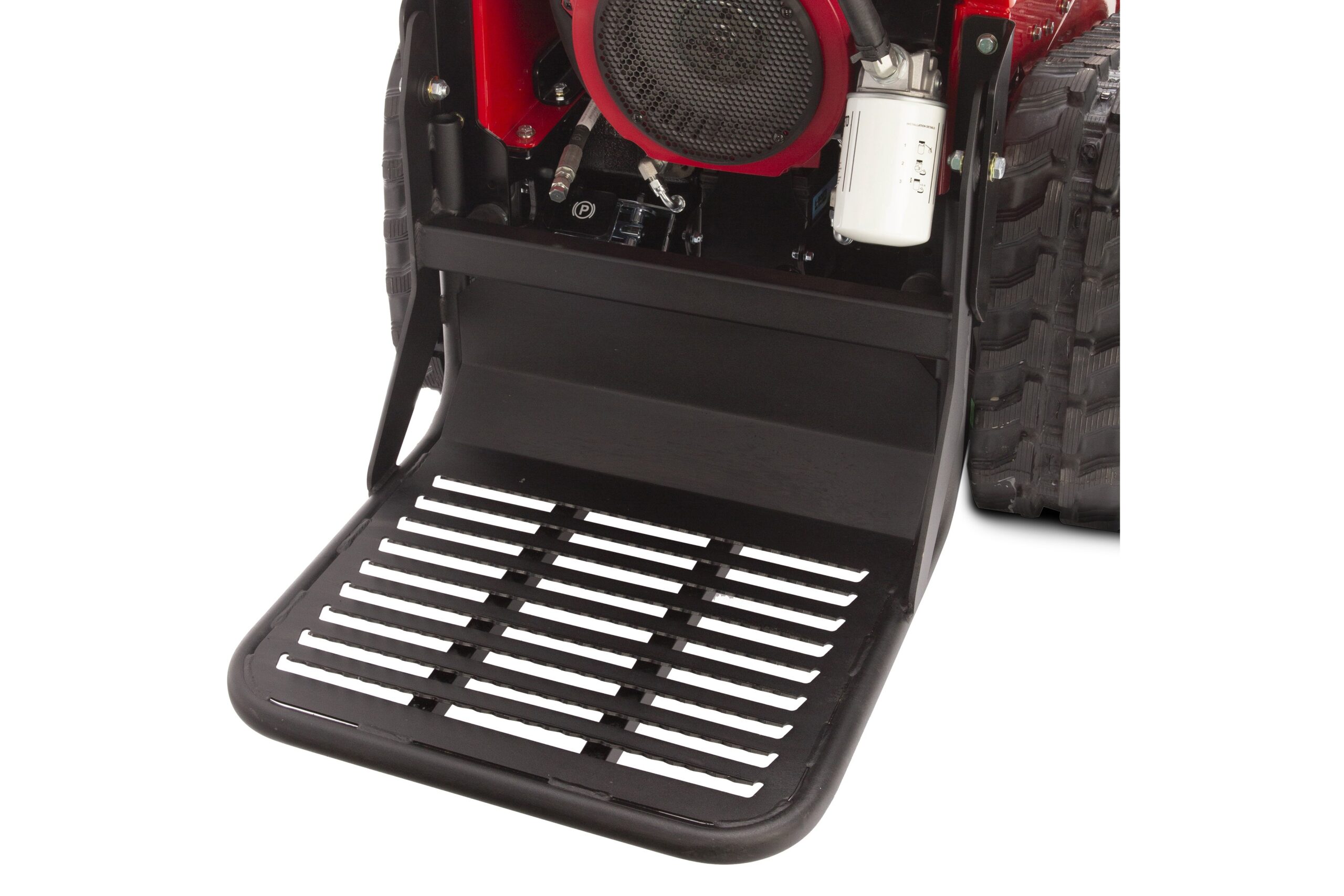

With a fixed operator platform and engine options of 20 or 23hp, the RTK Stand-on Track Trencher attacks the ground and the job with the power to meet the challenge. Trenching up to 48” deep and 6” wide, these trenchers will take on anything that is thrown at them. The RTK trenchers feature a 7.1” wide track that creates 241 square inches of footprint on each side of the machine. This gives outstanding traction on wet soil, clay, sand, or steep terrain while softening the impact on any existing landscaping. The track absorbs most of the impact caused by rocks, roots, or other obstructions in the soil. The RTK features a weight advantage that improves traction, reduces impact on the operator, and provides stability. All models feature electric start.

CONTROLS
The RTK features unique fine-tuning control adjustment that uses rod linkage instead of cables. The new Adjustable Trenching Control (ATC) can be positioned to modify the trenching speed of the tracks individually while on the go. By utilizing the individual track controls, the operator has the ability to keep their trench straight when working on uneven terrain.

ROI
Low maintenance and hardworking, the RTK trencher is reliable in the most difficult conditions. The simple steering, large tracks, and size of this trencher make the operator’s job simple and keeps customer satisfaction high. With accessible yet protected components, maintenance costs are minimal.

 U.S. Patent No. 9,988,084
